HyClamp™ Mini Gaskets

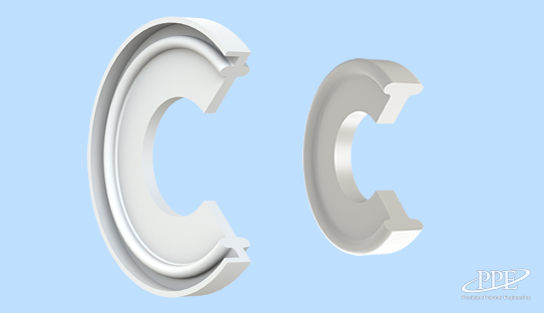

PPE manufactures ‘compact’ HyClamp™ mini clamps and gaskets to DIN32676 Series A, B, C and ASME BPE, in a range of dimensions and elastomers.
Our range of hygienic gaskets is molded in elastomer material grades including EPDM, silicon, FKM and FFKM. This range of materials provides an effective solution for every application, including X-ray/metal detectable elastomers.
HyClamp™ Mini Gasket Sizes
Metric mini clamp sizes DN6 and DN8 (6mm to 8mm)
Metric mini clamp sizes 10.2mm to 17.2mm
Imperial (inch) mini clamp sizes 0.25″ to 0.75″
Imperial (inch) mini clamp sizes 0.50″ to 0.75″
DIN32676 Series A expand_more
Metric mini clamp sizes DN6 and DN8 (6mm to 8mm)
DIN32676 Series B expand_more
Metric mini clamp sizes 10.2mm to 17.2mm
DIN32676 Series C expand_more
Imperial (inch) mini clamp sizes 0.25″ to 0.75″
ASME BPE expand_more
Imperial (inch) mini clamp sizes 0.50″ to 0.75″
PPE manufactures hygienic gaskets to DIN32676 in metric and imperial sizes, in FKM and FFKM, EPDM, and Silicone, as well as metal-detectable elastomers.
Our high performance sealing materials:
HyClamp™ mini gaskets can be produced in the following material types:
Perlast
expand_moreThe ultimate perfluoroelastomers for sealing applications where chemical resistance and high temperature performance are critical.
Detectaseal®
expand_moreThe latest advance in contamination detection and containment, with metal-detectable and xray-detectable elastomers designed to meet the stringent demands of food and pharmaceutical processing industries.
HyClamp™ Mini Gasket Materials
Perlast® G74S expand_more
Material Type: FFKM
Color: White
Temp Range (°C): -15 to +260
FDA: A-F
USP: 87+88
3A 18-03: Class I
Metal Detectable?: No
V70SW expand_more
Material Type: FKM
Color: White
Temp Range (°C): -15 to +200
FDA: A-F
USP: 87+88
3A 18-03: Class I
Metal Detectable?: No
Detectaseal® XE7A expand_more
Material Type: EPDM
Color: Blue
Temp Range (°C): -40 to +150
FDA: A-F
USP: —
3A 18-03: —
Metal Detectable?: Yes
Detectaseal® XS7H expand_more
Material Type: Silicone (VMQ)
Color: Black
Temp Range (°C): -60 to +200
FDA: A-F
USP: 88
3A 18-03: —
Metal Detectable?: Yes
S71U expand_more
Material Type: Silicone (VMQ)
Color: Translucent
Temp Range (°C): -60 to +200
FDA: A-F
USP: 87+88
3A 18-03: Class I
Metal Detectable?: No
E70Q expand_more
Material Type: EPDM
Color: Black
Temp Range (°C): -40 to +150
FDA: A-F
USP: 87+88
3A 18-03: Class II
Metal Detectable?: No
View our range of high performance materials
Find your nearest sales contact
Relevant Resources
Take a look at some selected resources for HyClamp™ mini clamps and gaskets.
HyClamp™ assembly
