DIN 11864 O-rings
Aseptic O-rings according to DIN 11864 (form A) are commonly used in DIN 11866 pipe couplings. The coupling comprises of a male and female ferrule (which include an O-ring groove) and a clamping device. This aseptic pipe connection is widely used in hygienic processing applications in industries such as:
PPE offers DIN 11864 O-rings in a range of elastomer materials to provide the optimum performance in any application. The range includes EPDM, VMQ (silicone), FKM, and FFKM (Perlast® perfluoroelastomers). See the full material range in the drop-down section below.
PPE manufactures various hygienic connectors to fit aseptic pipe couplings including; HyClamp™ sanitary gaskets, IDF gaskets, RJT O-rings, DIN 11851 D-seals and SMS seals.
How can we help? Contact us to discuss your aseptic sealing requirements.
-
Elastomer Material Range
DIN 11864 O-rings are available in the following elastomer materials:
PPE Material Material Type Color Temp Range °C FDA USP 3A 18-03 Metal Detectable Perlast® G74S FFKM White -15 to +260 A-F 87+88 Class I No V70SW FKM White -10 to +200 A-F 87+88 Class I No Detectaseal XE7A EPDM Blue -40 to +150 A-F -- -- Yes Detectaseal XS7H Silicone (VMQ) Black -60 to +200 A-F 88 -- Yes All the above materials are free from animal derived ingredients and are compliant with EC1935 and EC2023 regulations.
FDA, USP and 3A 18-03 certificates and material datasheets are available to download in the Engineer's Hub.
-

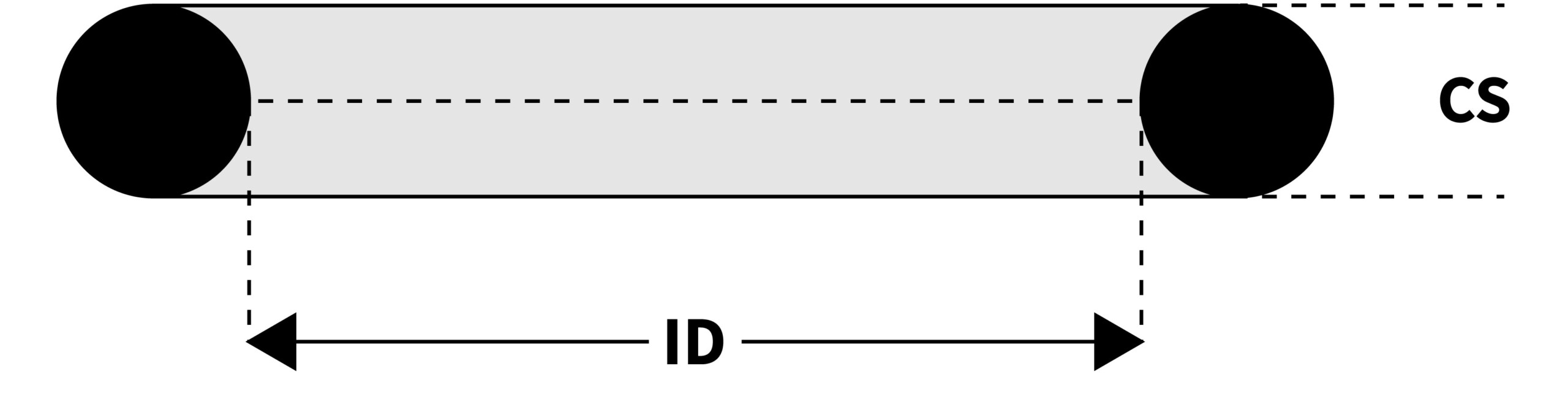

DIN 11864-1 (Series A) O-ring sizes for pipe couplings
DN Size O-ring
Internal Diameter
(mm)O-ring
Cross Section
(mm)10 12.00 3.5 15 18.00 3.5 20 22.00 3.5 25 28.00 3.5 32 34.00 5.0 40 40.00 5.0 50 52.00 5.0 65 68.00 5.0 80 83.00 5.0 100 102.00 5.0 -
DIN 11864-1 (Series B) O-ring sizes for pipe couplings
Nominal
DN SizeO-ring
Internal Diameter
(mm)O-ring
Cross Section
(mm)13.5 12.00 3.5 17.2 16.00 3.5 21.3 20.00 3.5 26.9 26.00 3.5 33.7 32.00 5.0 42.4 40.50 5.0 48.3 46.50 5.0 60.3 58.50 5.0 76.1 73.50 5.0 88.9 86.50 5.0 -
DIN 11864-1 (Series C) O-ring sizes for pipe couplings
Nominal
DN Size
(inch)O-ring
Internal Diameter
(mm)O-ring
Cross Section
(mm)0.50 12.00 3.5 0.75 18.00 3.5 1.00 24.00 3.5 1.50 37.00 5.0 2.00 50.00 5.0 2.50 62.00 5.0 3.00 75.00 5.0 4.00 100.00 5.0
